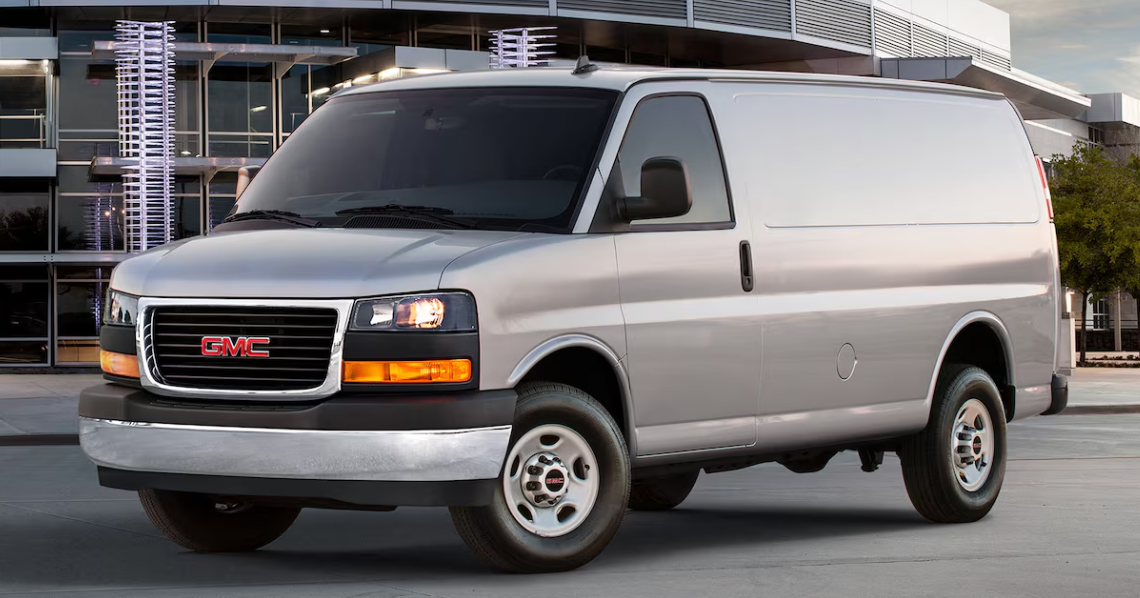

2026 GMC Savana Cargo Trim Level Comparison

The 2026 GMC Savana Cargo gives work crews rugged, dependable space and power. It comes as the Work Van trim in four configurations that pair a 2500 or 3500 series with a regular or extended wheelbase. Joyce Buick GMC in Avon, OH breaks down what sets each one apart so you can match the right van to the job.

2500 Regular Wheelbase Work Van Trim

The 2500 Regular Wheelbase Work Van trim rides a 135-inch wheelbase and offers 239.4 cubic feet of cargo volume. Maximum payload is 3,496 lbs.

The standard 4.3-liter V6 delivers 276 horsepower and 298 lb-ft of torque, and it tows up to 7,400 lbs. The available 6.6-liter V8 raises output to 401 horsepower and 464 lb-ft of torque, with a 10,000-lb trailering rating.

All four configurations of this new GMC van include StabiliTrak® electronic stability control and a Rear Vision Camera. Only the 2500 series offers the available Enhanced Convenience Package, Communications Package, and Safety Package.

2500 Extended Wheelbase Work Van Trim

The 2500 Extended Wheelbase Work Van trim stretches to a 155-inch wheelbase and 283.6 cubic feet of cargo volume. That adds 44.2 cubic feet over the regular wheelbase, and maximum payload is 3,275 lbs.

Trailering reaches 7,100 lbs with the V6 and 10,000 lbs with the V8.

3500 Regular Wheelbase Work Van Trim

The 3500 Regular Wheelbase Work Van trim lifts the gross vehicle weight rating to 9,600 lbs and delivers a maximum payload of 4,492 lbs, the highest of the four configurations.

Trailering reaches 7,400 lbs with the V6 and 10,000 lbs with the V8, and a heavy-duty locking rear differential is available.

3500 Extended Wheelbase Work Van Trim

The 3500 Extended Wheelbase Work Van trim pairs 283.6 cubic feet of cargo volume with a 4,271-lb maximum payload. It is also the only configuration with an available 9,900-lb gross vehicle weight rating.

Available upfitting features include:

• Ambulance Package
• Isolated second heavy-duty battery
• Wiring junction block for accessory equipment
• HVAC system auxiliary provisions

Trailering is rated at 7,200 lbs with the V6 and 10,000 lbs with the V8.

Put a 2026 GMC Savana Cargo to Work in Avon, OH

Whichever wheelbase and series you choose, the 2026 GMC Savana Cargo delivers the payload and trailering capability that working crews count on. Call or visit us in Avon, OH to compare all four configurations in person. Our local GMC dealership is your resource for finding the work van that fits your business.
